Inspection
Frame condition
Inspect the frame, fork, welds, and high-stress areas for cracks, dents, or prior repairs.
Felt

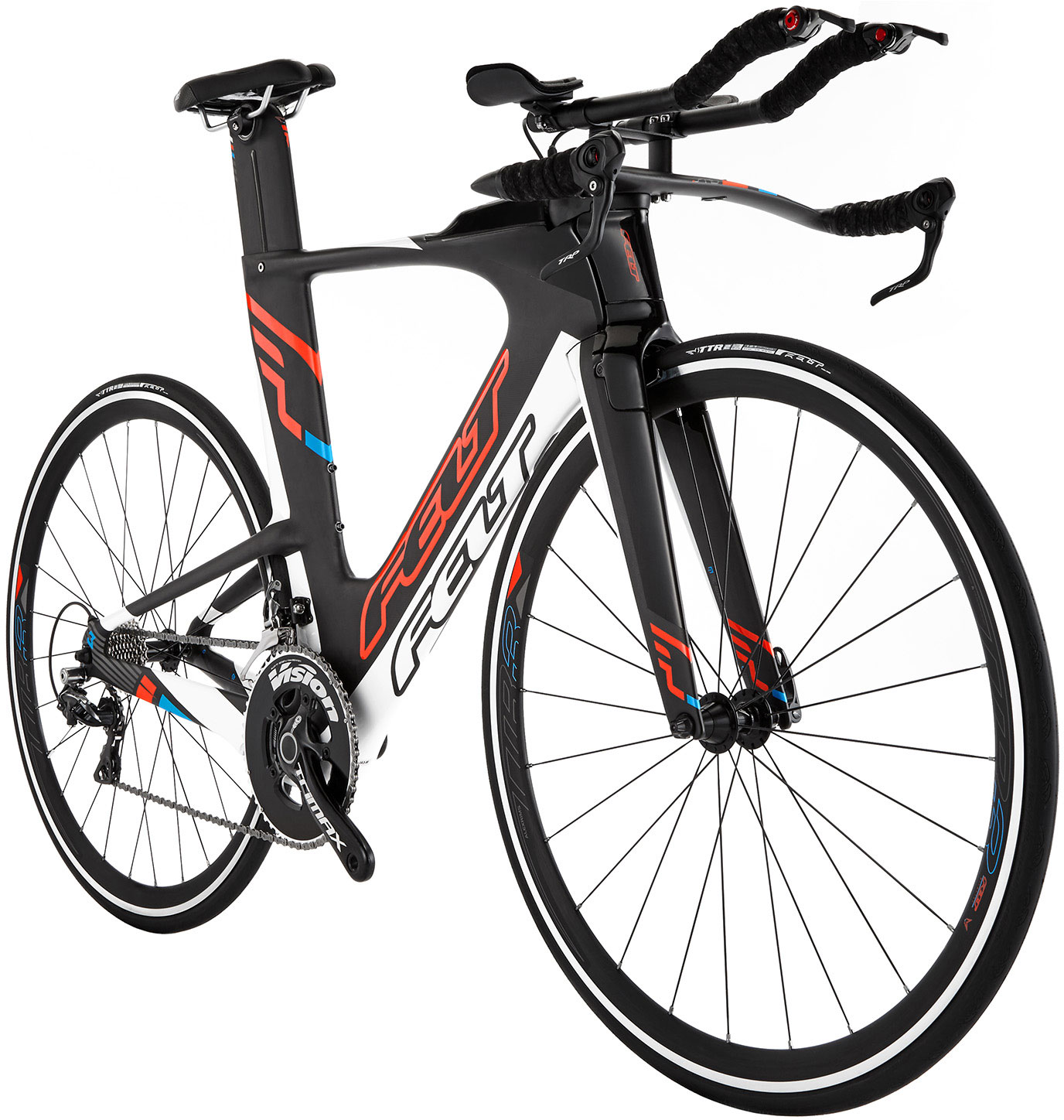

2016 Felt IA 3
Value Guide market data · 2016 Felt IA 3
12-month trend
5%
Direction and magnitude, not judgment
vs. category average
7%
Drops faster than category avg
Price over time - 2016 Felt IA 3
Values based on actual sales data. Enter your bike's specifics to get a precise valuation.
All IA model years
2016 IA 3 lineup
Overview
About this bike
2016 Felt IA 3 value depends on condition, original build, frame material, service history, and current buyer demand.
Specifications
Frameset
- Fork
- Felt Dagger UHC Advanced Carbon
- Frame
- Felt Integrated Aero TT/Tri UHC Advanced Carbon, internal cable routing, electronic compatible
Drivetrain
- Groupset
- Shimano Dura-Ace
- Shifters
- microSHIFT TT 11-speed
- Front Derailleur
- Shimano Dura Ace braze-on
- Rear Derailleur
- Shimano Dura Ace short cage
- Crankset
- Vision TriMax Pro TT BB30 48 - 51cm = 165mm 54 - 56cm = 170mm 58cm = 172.5mm
- Bottom Bracket
- Vision BB30
- Chain
- Shimano 11-speed
- Freewheel
- Shimano 11-speed, 12-25T
- Cables
- Jagwire Super-Slick brake cable w/ Compressionless Housing & Felt Slick derailleur
- Chainrings
- 52/38
- Rear Cogs
- Shimano, 11-speed: 12-25
Brakes
- Brake Levers
- Aero TT / Tri
- Brakes
- Front Brake: Felt Aero Brake System w/ integrated cover/Rear Brake: Felt Aero Brake System w/ integrated cover
Cockpit
- Headset
- FSA IS Integrated, 1.125" sealed ACB cartridge bearings w/ Felt compression device
- Stem
- Felt Dagger
- Handlebar
- Felt Dagger UHC Ultimate + Nano base bar w/ Felt ƒ-Bend 3-position extensions
- Grips
- Felt VelvetGel Tape & Dimpled Gel Pads
- Saddle
- ISM Adamo Attack
- Seat Post
- Felt Vibration Reducing Aero Tri UHC Advanced carbon fiber w/ 3T DiffLock™ Comfort Module internals, 300mm length
- Bar Ends
- Felt Mechanical Extension Plugs
- Seat Post Clamp
- Felt Internaloc integrated w/ titanium bolts
- Seatpost
- Felt Vibration Reducing Aero Tri w/3T DiffLock Comfort Module
Wheels & Tires
- Wheelset
- Felt TTR3 wheels with Felt Aero TTR2 tires
- Rims
- Felt TTR3, 22mm Width, 35mm Depth
- Front Hub
- Felt TTR3, sealed cartridge bearing, 24H
- Rear Hub
- Felt R3, sealed cartridge bearing, 28H, 11-speed
- Spokes
- 1.8 / 1.2 / 1.8mm butted aero stainless steel w/ aluminum nipples
- Tires
- Felt Aero TTR2, 700c x 23c
- Front Tire
- Felt Aero TTR2, 700x23c
- Hubs
- Felt TTR3, sealed cartridge bearing, 24H (Front), Felt R3, sealed cartridge bearing, 28H (Rear)
Frame sizing
XS4'10"-5'2"
S5'2"-5'6"
M5'6"-5'10"
L5'10"-6'2"
XL6'2"-6'6"
M highlighted as most common resale size. Sourced from catalog metadata.
Geometry
- Stack
- Varies by size
- Reach
- Varies by size
- Wheelbase
- Varies by size
Industry standard. Sourced from catalog metadata.
What to check when buying used
Inspection
Drivetrain wear
Check chain stretch, cassette teeth, chainrings, and shifting under load before negotiating price.
Inspection
Wheel condition
Inspect rims, hubs, spokes, and bearing play; ask about the tire age and any prior wheel rebuilds.
Inspection
Service history
Ask for service records covering bearings, brakes, drivetrain, and any frame or fork warranty work.
Inspection
Carbon inspection
Tap test the frame, fork, seatpost, and bars for cracks; verify no impact damage near dropouts.
Inspection
Brake hoses & cables
Check hydraulic line bleed, cable housing wear, and confirm rotors are within spec.
