Inspection
Frame condition
Inspect the frame, fork, welds, and high-stress areas for cracks, dents, or prior repairs.
Felt

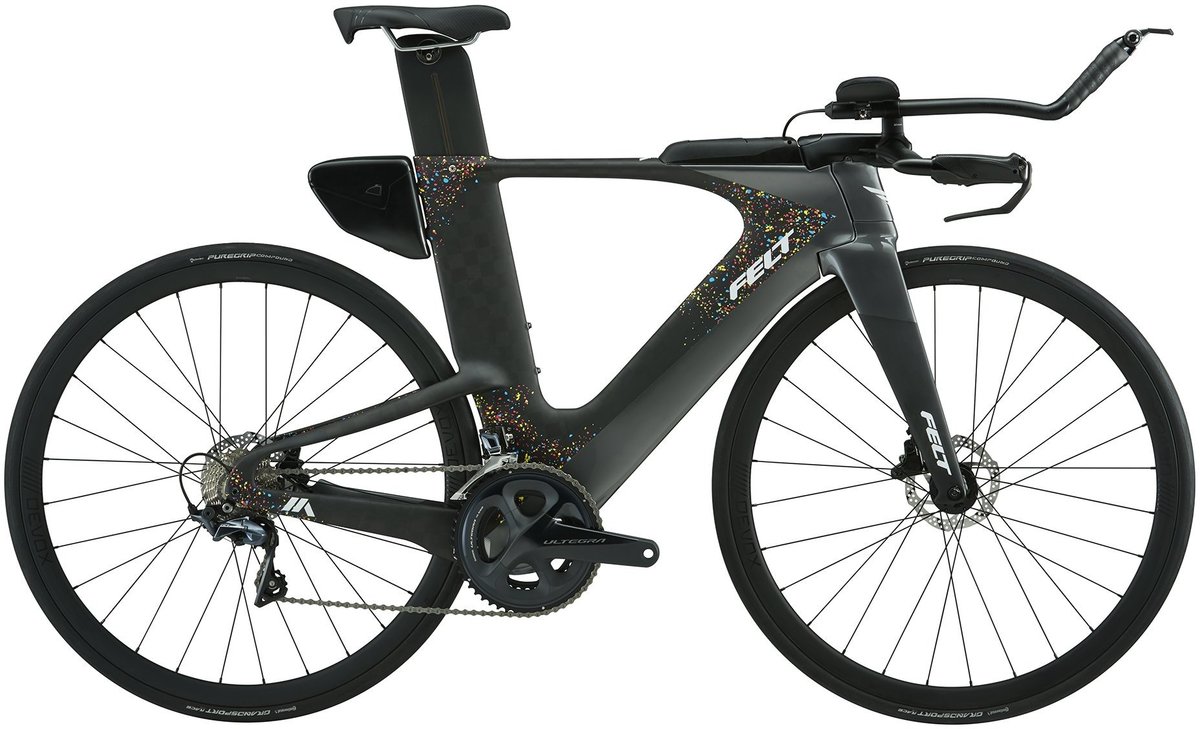

2020 Felt IA Advanced Ultegra
Value Guide market data · 2020 Felt IA Advanced Ultegra
12-month trend
9%
Direction and magnitude, not judgment
vs. category average
14%
Holds value better than category avg
Price over time - 2020 Felt IA Advanced Ultegra
Values based on actual sales data. Enter your bike's specifics to get a precise valuation.
All IA model years
2020 IA Advanced Ultegra lineup
Overview
About this bike
2020 Felt IA Advanced Ultegra value depends on condition, original build, frame material, service history, and current buyer demand.
Specifications
Frameset
- Fork
- Felt Dagger Disc UHC Advanced carbon fiber monocoque construction, 1.125" carbon fiber steerer, upper cover, blades, dropouts, crown; internal disc-brake routing, flat-mount disc brake standard
- Frame
- Felt Integrated Aero Tri Disc UHC Advanced + TeXtreme carbon fiber, MMC with InsideOut construction, 68mm BSA threaded bottom bracket shell, Syntace style thru axle, flat mount disc brake standard, horizontal dropouts, replaceable rear derailleur hanger, internal mechanical or electronic cable routing
Drivetrain
- Groupset
- Shimano Ultegra
- Bottom Bracket
- Shimano Hollowtech BSA threaded
- Cassette
- Shimano 11-speed, 11-28T
- Chain
- Shimano 11-speed
- Chainrings
- 52/36T
- Crankset
- Shimano Ultegra R8000, 48 -51cm: 165mm, 54 -56cm: 170mm, 58cm: 172.5mm
- Front Derailleur
- Shimano Ultegra R8000 braze-on
- Rear Derailleur
- Shimano Ultegra R8000 11-speed short cage
- Shifters
- microSHIFT TT 11-speed
Brakes
- Brake Levers
- TRP HD-T910 hydraulic
- Brakes
- TRP HD-T910 hydraulic disc, 140mm rotor
Cockpit
- Handlebar
- Devox Bayonet 3.1 base bar with Devox Ergomod extensions, 31.8mm, 48 - 51cm: 390mm, 54 - 58cm: 420mm
- Headset
- FSA integrated, 1.125" 36/45-deg sealed ACB cartridge bearings MR122 {873E-RS}, split top race H2145 {No.11AGY-2} with Felt compression device
- Saddle
- ISM PS1.0
- Seatpost
- Felt VariMount Aero Tri UHC Advanced carbon fiber, 300mm length
- Stem
- Felt Dagger 31.8 Cold Forged
Wheels & Tires
- Axles
- Front: 12 x 100mm thru-axle, Rear: 12 x 142mm thru-axle
- Front Tire
- Continental Grand Sport Race folding, 700 x 25c
- Hubs
- Devox RSL3D, sealed cartridge bearing, 6-bolt, 28H
- Rims
- Devox 30A Disc, tubeless ready, 19mm width, 30mm depth
- Spokes
- 2.0mm stainless steel
Accessories
- Accessories & Extras
- Carbon assembly paste, aero seatpost slot covers, IA CALpac 2.0, IA BTSpac storage box
Frame sizing
XS4'10"-5'2"
S5'2"-5'6"
M5'6"-5'10"
L5'10"-6'2"
XL6'2"-6'6"
M highlighted as most common resale size. Sourced from catalog metadata.
Geometry
- Stack
- Varies by size
- Reach
- Varies by size
- Wheelbase
- Varies by size
Industry standard. Sourced from catalog metadata.
What to check when buying used
Inspection
Drivetrain wear
Check chain stretch, cassette teeth, chainrings, and shifting under load before negotiating price.
Inspection
Wheel condition
Inspect rims, hubs, spokes, and bearing play; ask about the tire age and any prior wheel rebuilds.
Inspection
Service history
Ask for service records covering bearings, brakes, drivetrain, and any frame or fork warranty work.
Inspection
Carbon inspection
Tap test the frame, fork, seatpost, and bars for cracks; verify no impact damage near dropouts.
Inspection
Brake hoses & cables
Check hydraulic line bleed, cable housing wear, and confirm rotors are within spec.
