Inspection
Frame condition
Inspect the frame, fork, welds, and high-stress areas for cracks, dents, or prior repairs.
Felt

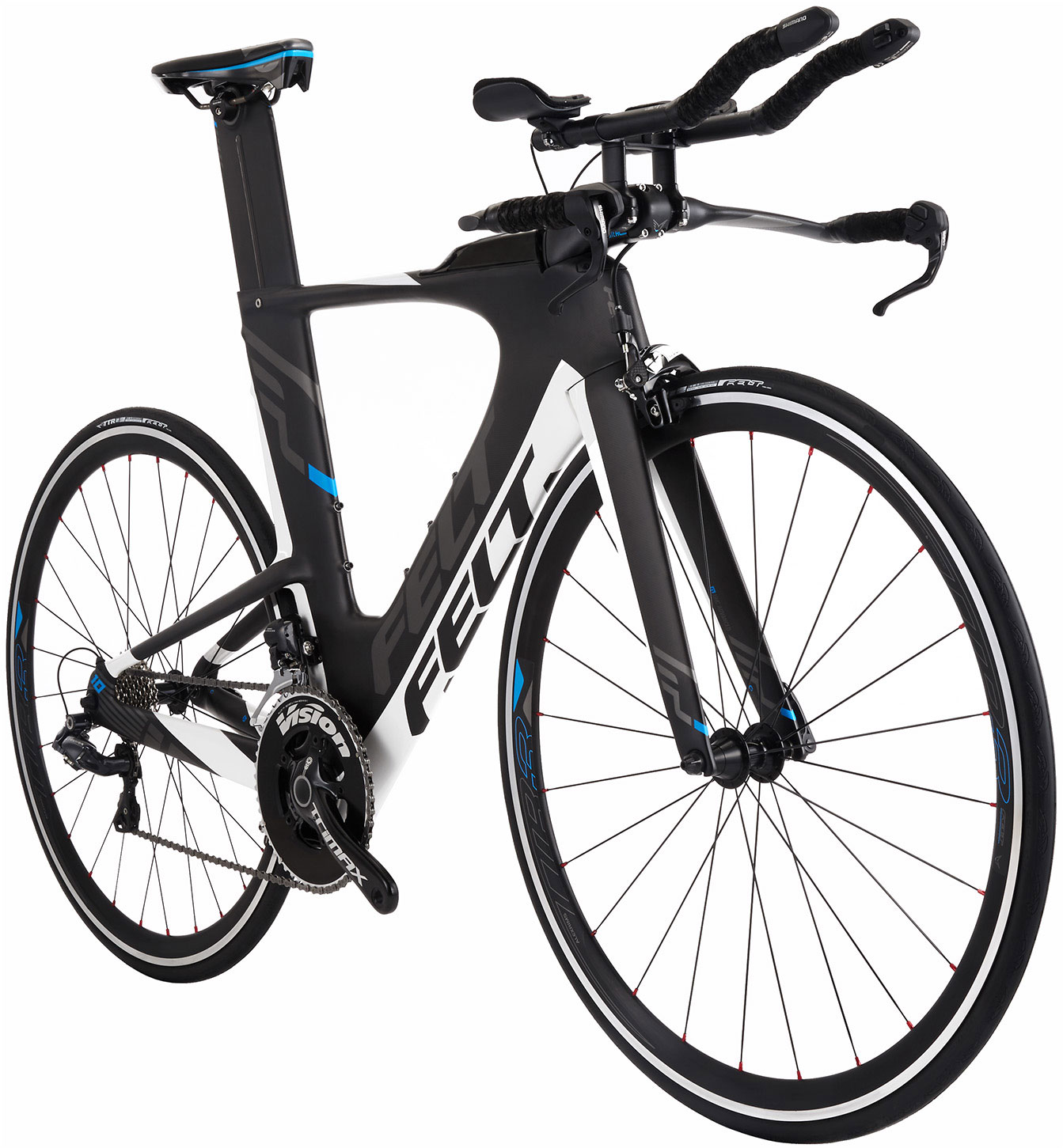

2016 Felt IA 10
Value Guide market data · 2016 Felt IA 10
12-month trend
3%
Direction and magnitude, not judgment
vs. category average
6%
Holds value better than category avg
Price over time - 2016 Felt IA 10
Values based on actual sales data. Enter your bike's specifics to get a precise valuation.
All IA model years
2016 IA 10 lineup
Overview
About this bike
2016 Felt IA 10 value depends on condition, original build, frame material, service history, and current buyer demand.
Specifications
Frameset
- Fork Brand & Model
- Felt Dagger UHC Performnce Carbon
- Frame Construction
- Felt Integrated Aero TT/Tri UHC Performance Carbon, internal cable routing, electronic compatible
Drivetrain
- Groupset
- Shimano Ultegra
- Shifters
- Shimano TT/Tri Di2, 2 Button
- Front Derailleur
- Shimano Ultegra Di2 braze-on
- Rear Derailleur
- Shimano Ultegra Di2
- Crankset
- Vision TriMax Pro TT BB30 48cm = 165mm 51cm = 167.5mm 54 - 56cm = 170mm 58cm = 172.5mm
- Bottom Bracket
- Vision BB30
- Chain
- Shimano 11-speed
- Freewheel
- Shimano 11-speed, 12-28T
- Cables
- Jagwire Super-Slick brake cable w/ Compressionless Housing & Shimano Di2 derailleur wire
- Cassette
- Shimano, 11-speed: 12-28
Brakes
- Brake Levers
- Shimano Ultegra Tri Di2, 2 Button
- Brakes
- Front Brake: Vision TriMax Aero Caliper/Rear Brake: FSA Aero Direct Mount
Cockpit
- Headset
- FSA IS Integrated, 1.125" sealed ACB cartridge bearings w/ Felt compression device
- Stem
- Felt Tri155
- Handlebar
- Felt Bayonet 3 base bar w/ Felt ƒ-Bend 3-position extensions, Ø31.8mm 48 - 54cm = 390mm 56 - 58cm = 420mm
- Grips
- Felt VelvetGel Tape, Felt Tri Tip Grips & Dimpled Gel Pads
- Saddle
- Prologo TGALE TiRox
- Seat Post
- Felt Vibration Reducing Aero Tri UHC Advanced carbon fiber w/ 3T DiffLock Comfort Module internals, 300mm length
- Bar Ends
- Felt Di2 Extension Plugs
- Seat Post Clamp
- Felt Internaloc integrated w/ Cr-Mo bolts
- Seatpost
- Felt Vibration Reducing Aero Tri w/3T DiffLock Comfort Module
Wheels & Tires
- Wheelset
- Felt TTR3 wheels with Felt Aero TTR2 tires
- Rims
- Felt TTR3, 22mm Width, 35mm Depth
- Front Hub
- Felt TTR3, sealed cartridge bearing, 24H
- Rear Hub
- Felt R3, sealed cartridge bearing, 28H, 11-speed
- Spokes
- 1.8 / 1.2 / 1.8mm butted aero stainless steel w/ aluminum nipples
- Tires
- Felt Aero TTR2, 700c x 23c
- Hubs
- Front: Felt TTR3; Rear: Felt R3
Frame sizing
XS4'10"-5'2"
S5'2"-5'6"
M5'6"-5'10"
L5'10"-6'2"
XL6'2"-6'6"
M highlighted as most common resale size. Sourced from catalog metadata.
Geometry
- Stack
- Varies by size
- Reach
- Varies by size
- Wheelbase
- Varies by size
Industry standard. Sourced from catalog metadata.
What to check when buying used
Inspection
Drivetrain wear
Check chain stretch, cassette teeth, chainrings, and shifting under load before negotiating price.
Inspection
Wheel condition
Inspect rims, hubs, spokes, and bearing play; ask about the tire age and any prior wheel rebuilds.
Inspection
Service history
Ask for service records covering bearings, brakes, drivetrain, and any frame or fork warranty work.
