Inspection
Frame condition
Inspect the frame, fork, welds, and high-stress areas for cracks, dents, or prior repairs.
Specialized

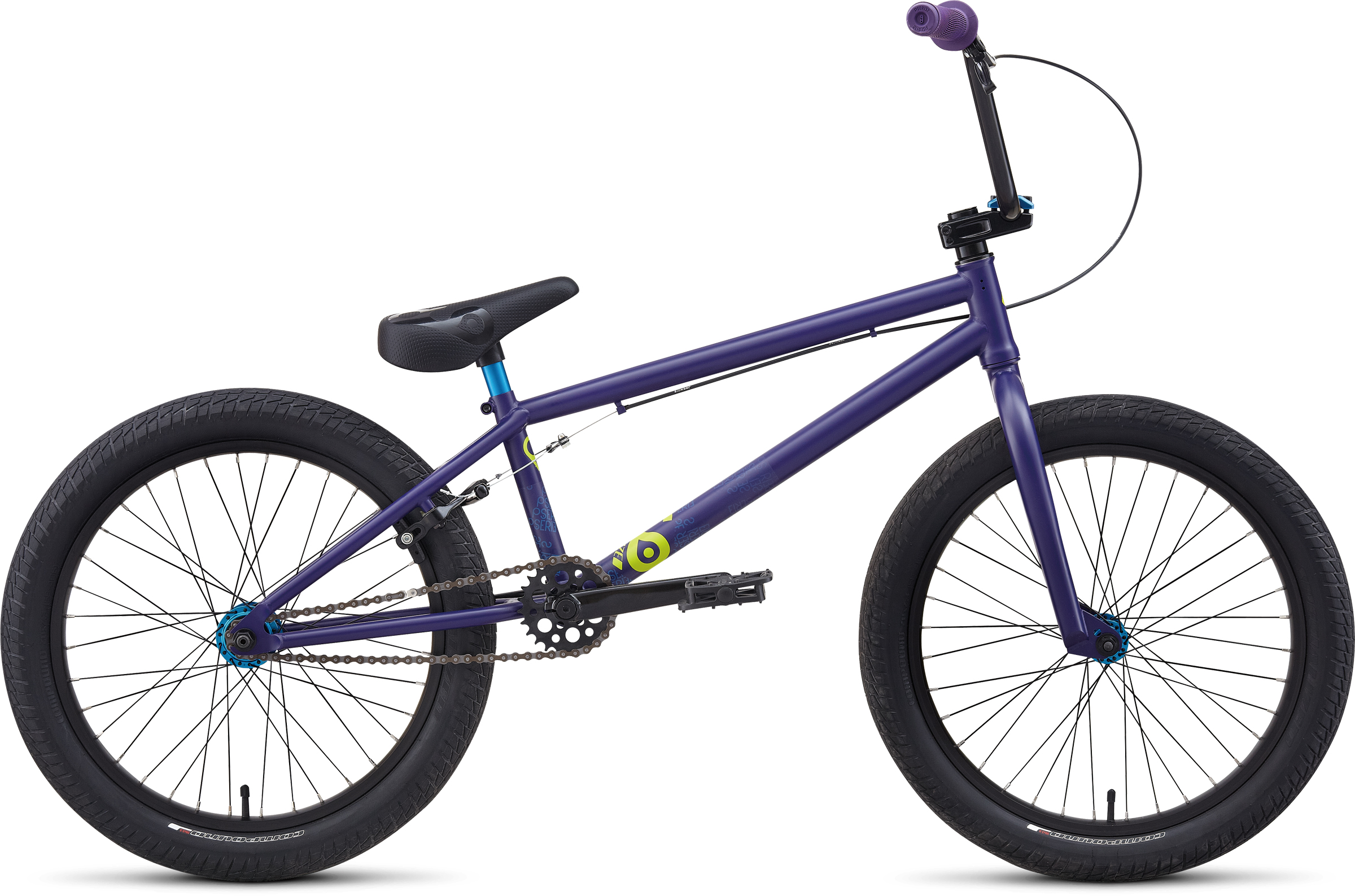

2014 Specialized P.20 AM
Value Guide market data · 2014 Specialized P.20 AM
12-month trend
— %
Direction and magnitude, not judgment
vs. category average
— %
No category comparison available
Price over time - 2014 Specialized P.20 AM
Values based on actual sales data. Enter your bike's specifics to get a precise valuation.
All P.20 model years
2014 P.20 AM lineup
Overview
About this bike
2014 Specialized P.20 AM value depends on condition, original build, frame material, service history, and current buyer demand.
Specifications
Frameset
- FORK
- 20" BMX, 2mm thick Hi-Ten, tapered blades, 1-1/8" threadless, 5mm Cr-Mo dropouts for 3/8" axle
- Fork Length
- 314mm
- Frame
- Hi-ten steel, MD BB, 5mm thick dropouts
Drivetrain
- Groupset
- 2014 Specialized P.20 AM
- FREEWHEEL
- 1 pc. CNC, 9T driver
- CHAIN
- KMC Z-510H
- CRANKSET
- P.Crank, 3pc. Cr-Mo, tubular arms, 8-spline, 170mm
- CHAINRINGS
- 25t
- BOTTOM BRACKET
- MID BB, 2x sealed cartridge bearings w/ 19mm, 8-spline spindle
- Bottom Bracket Drop
- -35mm
- Bottom Bracket Height
- 291mm
Brakes
- BRAKE LEVERS
- Tektro XL-320, U-brake lever, 15mm cable pull
- REAR BRAKE
- Tektro, U-brake, die-cast, single bushing, coil spring, 15mm offset arms
- Brakes
- Tektro U-brake, aluminum
Cockpit
- HEADSET
- Integrated 1-1/8" threadless, Campy style, full cartridge bearings
- STEM
- BMX stem, die-cast alloy, top load, 50mm, 22.2mm clamp
- HANDLEBARS
- Specialized P.Series BMX bar, Hi-Ten steel, 710mm wide, 11-degree backsweep, 2-degree upsweep, 210mm rise, 22.2mm
- GRIPS
- P.Grip BMX, w/ flange, Kraton, end plugs, 150mm
- SADDLE
- P.Seat SL, 1pc. w/ co-molded alloy 25.4mm seatpost, padded
- SEATPOST
- Alloy, 25.4mm, integrated w/ saddle
- Handlebar Width
- 710mm
- Stem Length
- 50mm
- Seatpost Length
- 200mm
- SEAT BINDER
- Integrated Cr-Mo bolt w/ nylock nut
- Handlebar
- Specialized P.Series BMX, steel
Wheels & Tires
- RIMS
- P.Series 20", alloy double-wall, triple void, 35mm, 36h
- FRONT HUB
- P.Series BMX, alloy, loose ball, solid axle, 36h
- REAR HUB
- P.Series BMX, alloy, loose ball, hollow axle, 36h
- SPOKES
- Stainless, 14g (2.0mm)
- FRONT TIRE
- Specialized Compound Street, 30TPI, wire bead, 20x2.3"
- REAR TIRE
- Specialized Compound Street, 30TPI, wire bead, 20x2.3"
- Top Tube Length (Actual)
- 522mm
- Seat Tube Length, Center to Top
- 235mm
- INNER TUBES
- Standard Schrader valve
- Hubs
- Aluminum, Front: 3/8-inch solid axle, Rear: 14mm hollow axle
- Tires
- Specialized Compound Street, 20 x 2.3
- Wheel Set
- Specialized P.Series, 20-inch, 35mm wide, 36 hole
Pedals
- PEDALS
- Plastic platform w/ molded pins, loose ball, 9/16"
Accessories
- NOTES
- Chainguard, reflectors, owner's manual
Frame sizing
XS4'10"-5'2"
S5'2"-5'6"
M5'6"-5'10"
L5'10"-6'2"
XL6'2"-6'6"
M highlighted as most common resale size. Sourced from catalog metadata.
Geometry
- Stack
- Varies by size
- Reach
- Varies by size
- Wheelbase
- Varies by size
Industry standard. Sourced from catalog metadata.
What to check when buying used
Inspection
Drivetrain wear
Check chain stretch, cassette teeth, chainrings, and shifting under load before negotiating price.
Inspection
Wheel condition
Inspect rims, hubs, spokes, and bearing play; ask about the tire age and any prior wheel rebuilds.
Inspection
Service history
Ask for service records covering bearings, brakes, drivetrain, and any frame or fork warranty work.
