Inspection
Frame condition
Inspect the frame, fork, welds, and high-stress areas for cracks, dents, or prior repairs.
Specialized

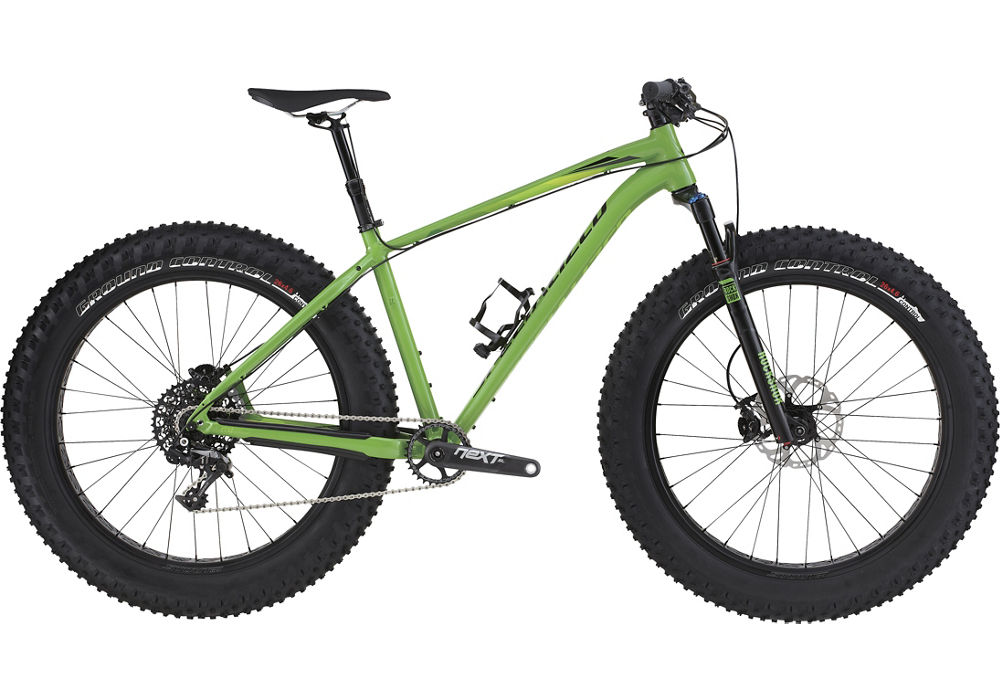

2016 Specialized Fatboy Pro Trail
Value Guide market data · 2016 Specialized Fatboy Pro Trail
12-month trend
4%
Direction and magnitude, not judgment
vs. category average
7%
Holds value better than category avg
Price over time - 2016 Specialized Fatboy Pro Trail
Values based on actual sales data. Enter your bike's specifics to get a precise valuation.
All Fatboy model years
2016 Fatboy Pro Trail lineup
Overview
About this bike
2016 Specialized Fatboy Pro Trail value depends on condition, original build, frame material, service history, and current buyer demand.
Specifications
Frameset
- FRAME
- Specialized M4 aluminum, fully-butted tubing w/ smooth welds, tapered head tube, post-mount disc dropouts, 190mm rear hub spacing, replaceable alloy derailleur hanger
- FORK
- RockShox Bluto RL, Solo Air spring, Motion Control damping,external rebound adjust, tapered alloy steerer, mag lowers, 32mm alloy stanchions, disc mount, QR 15mm thru-axle for 150mm hub spacing
- Fork Brand & Model
- RockShox Bluto RL, 15mm thru-axle
- Frame Construction
- Specialized M4 aluminum
Drivetrain
- Groupset
- SRAM X01
- REAR DERAILLEUR
- SRAM X01 Type 2.1, 11-speed, carbon cage
- SHIFT LEVERS
- SRAM X01, 11-speed, trigger
- CASSETTE
- SRAM X1, 11-speed, 10-42t
- CHAIN
- KMC X11L, 11-speed, w/ reusable MissingLink
- CRANKSET
- Race Face Next SL, PF30 BB, 100mm spindle, 28T direct mount ring
- Chainrings
- 28t
- Shifters
- SRAM X01
Brakes
- FRONT BRAKE
- Shimano Deore XT, hydraulic disc, metallic pads w/ fins, Ice-Tech rotor
- REAR BRAKE
- Shimano Deore XT, hydraulic disc, metallic pads w/ fins, Ice-Tech rotor
- BRAKE LEVERS
- Shimano XT, hydraulic, reach adjust
- Brakes
- Shimano Deore XT, hydraulic-disc, Ice Tech rotors
Cockpit
- HEADSET
- 1-1/8"" upper, 1-1/2"" lower, threadless, Campy style, cartridge bearings
- SEAT BINDER
- Command Post, single bolt, 34.9mm
- STEM
- Specialized XC, 3D forged alloy, 4-bolt, 6-degree rise, anti-corrosion hardware
- HANDLEBARS
- Specialized, 7075 alloy, 8-backsweep, 6-upsweep, 10mm rise, 31.8mm
- GRIPS
- Specialized Sip Grip, light lock-on, half-waffle, S/M: regular thickness, L/XL: XL thickness
- SADDLE
- Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm
- SEATPOST
- Command Post BlackLite, alien head design, single bolt, remote adjust lever, 30.9mm, S: 100mm travel, M/L/XL: 125mm travel
- Handlebar
- Specialized, aluminum
Wheels & Tires
- RIMS
- Specialized Stout XC 90, disc, alloy, single wall, 90mm wide, sleeve joint, hookless design, 32h
- FRONT HUB
- Specialized Stout XC 150, Hi Hi disc, double-sealed cartridge bearings, 15mm thru-axle, 32h
- REAR HUB
- Specialized Stout XC 190, Hi Hi disc, alloy, sealed cartridge bearings, QR, 32h
- SPOKES
- Stainless, butted, 2.0/1.8/2.0mm, black
- FRONT TIRE
- Specialized Ground Control Fat, 120TPI, folding bead, 26x4.6""
- REAR TIRE
- Specialized Ground Control Fat, 120TPI, folding bead, 26x4.6""
- INNER TUBES
- Standard, Presta valve
- Hubs
- Specialized Stout XC disc, aluminum
- Tires
- Specialized Ground Control, 26 x 4.6-inches
- Wheel Set
- Specialized Stout XC 90, aluminum
Pedals
- PEDALS
- Specialized Bennies, 6061 alloy body, sealed cartridge, 4.5mm removable pins
Frame sizing
XS4'10"-5'2"
S5'2"-5'6"
M5'6"-5'10"
L5'10"-6'2"
XL6'2"-6'6"
M highlighted as most common resale size. Sourced from catalog metadata.
Geometry
- Stack
- Varies by size
- Reach
- Varies by size
- Wheelbase
- Varies by size
Industry standard. Sourced from catalog metadata.
What to check when buying used
Inspection
Drivetrain wear
Check chain stretch, cassette teeth, chainrings, and shifting under load before negotiating price.
Inspection
Wheel condition
Inspect rims, hubs, spokes, and bearing play; ask about the tire age and any prior wheel rebuilds.
Inspection
Service history
Ask for service records covering bearings, brakes, drivetrain, and any frame or fork warranty work.
Inspection
Suspension service
Confirm fork lowers and rear shock service intervals; ask for the most recent service receipts.
Inspection
Frame pivots & bearings
Cycle the suspension off the bike to feel for play, grit, or noise in pivot bearings.
